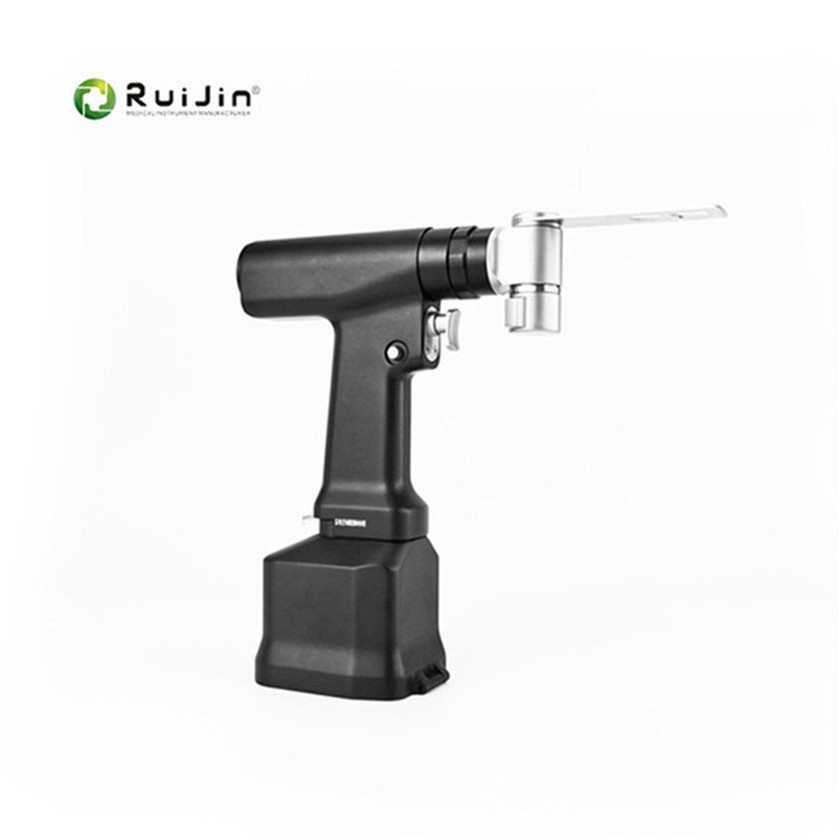

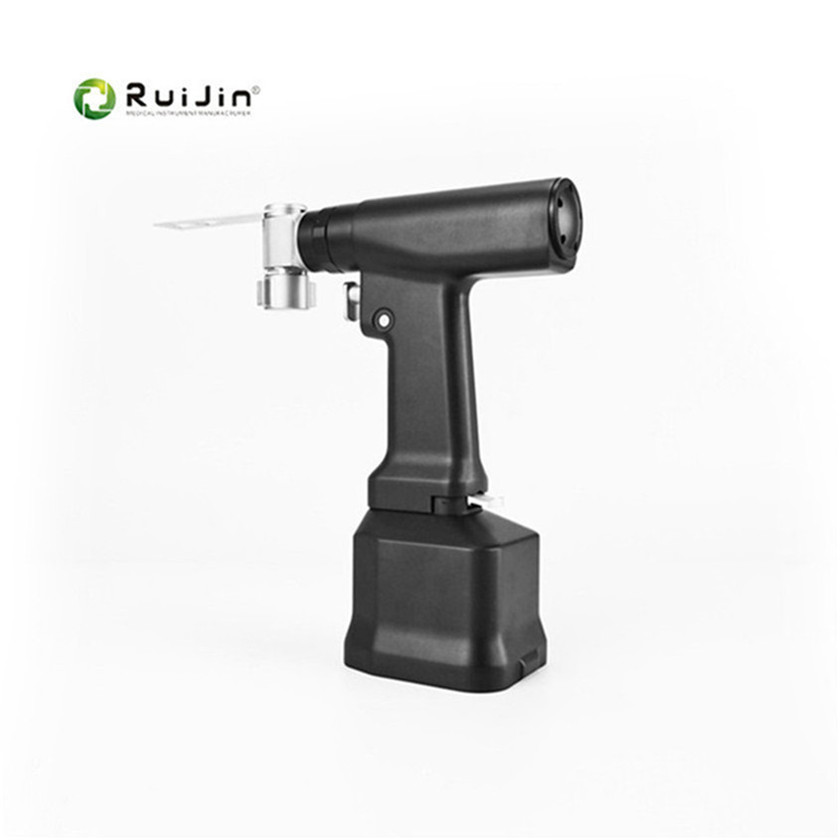

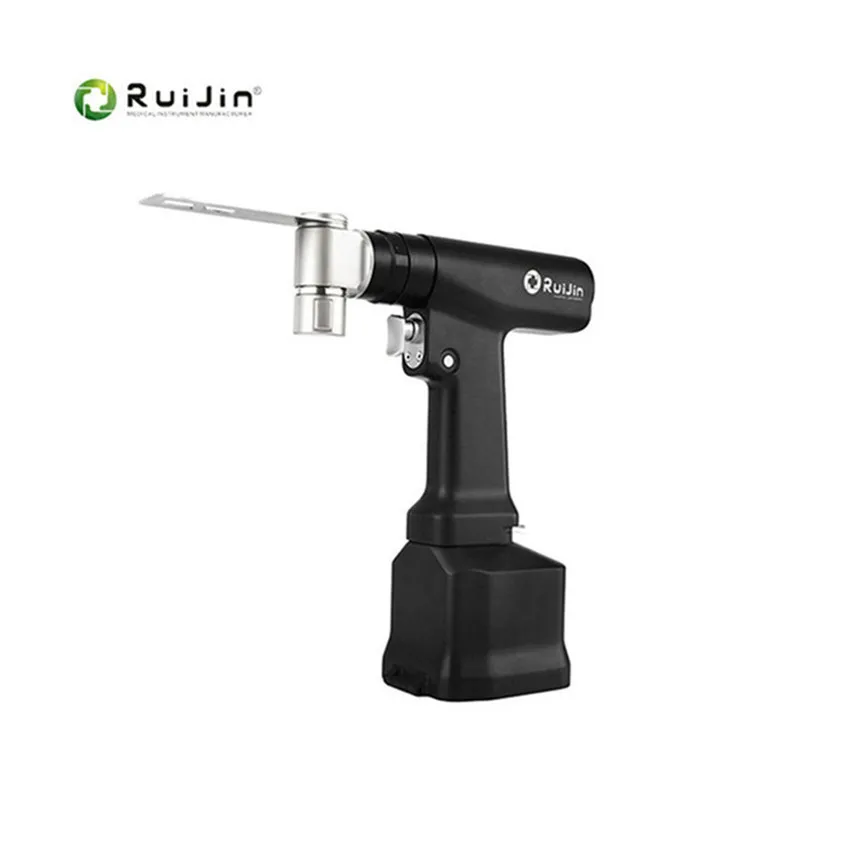

The Precision Brushless Multifunction Bone Drill Economical Handpiece is a high-performance surgical tool designed for versatile orthopedic procedures such as trauma surgery, joint replacement, and spinal interventions.
ES-1011
ruijin
Equipped with a brushless motor and multi-attachment compatibility, it delivers 1025 RPM with ±0.01mm concentricity for precise drilling and reaming. Certified by CE, FDA, and ISO 13485 , this handpiece features a 997g lightweight design and autoclavable components (134–138°C) for infection control. Its universal quick-coupling system supports Stryker, Aesculap, and AO-standard drills, making it ideal for multi-brand surgical setups.
The high-efficiency brushless motor provides 1025 RPM with low heat dissipation (<35°C rise during 30-minute use) , ensuring consistent performance during prolonged surgeries. A smart torque control system (5–20 Nm) adapts to bone density variations, preventing over-drilling.
The universal quick-coupling system supports Stryker, Aesculap, and AO-standard drills (2–8mm diameter) , reamers, and wire drivers. A Jacobs chuck (0.6–3mm) accommodates micro-drills for intricate procedures like cranial osteotomies.
Weighing 997g with a non-slip grip , the handpiece reduces surgeon fatigue during 2+ hour surgeries. All surgical-contact components are autoclavable at 134–138°C and withstand 1,000+ sterilization cycles .
The 14.4V lithium-ion battery includes a smart management system for optimized power distribution, providing 90+ minutes of continuous use . A rapid-charging system (2 hours to full capacity) minimizes downtime.
Automatic torque limiting (20 Nm) prevents bone damage, while anti-rotation locking secures attachments during operation. The handpiece meets IPX7 waterproof standards for easy cleaning.
Trauma Surgery: Used in open reduction internal fixation (ORIF) for femoral, tibial, and humeral fractures, ensuring precise screw placement.
Joint Replacement: Supports femoral canal preparation in knee arthroplasty and acetabular reaming in hip surgery.
Spinal Surgery: Enables minimally invasive pedicle screw insertion with ±0.05mm accuracy .
Veterinary Surgery: Suitable for animal orthopedic procedures, with adjustable speed (0–1025 RPM) for small and large animal bones.
Q: Can the handpiece be used with third-party attachments?
A: Yes, its universal quick-coupling system supports Stryker, Aesculap, and AO-standard drills and reamers.
Q: What is the maximum drill bit diameter?
A: The handpiece accommodates 8mm diameter drills for large bone applications.
Q: How is the motor protected during sterilization?
A: The autoclavable housing is designed to withstand 134–138°C temperatures without motor degradation.
Q: Is the battery compatible with other chargers?
A: Yes, it supports 14.4V lithium-ion chargers from major brands like Stryker and Conmed.
Handpiece | Working Voltage | 14.4V |
Output Power | ≥20W | |
Unit rise in temperature | ≤25℃ | |
Charger | Input Voltage | AC 220V,50Hz |
Output Power | 14.4V,900Ma | |
Input power | 30VA | |
Battery | Voltage | 14.4V |
Charging time | About 3h | |
Oscillations | 0-15000ocs/min | |
