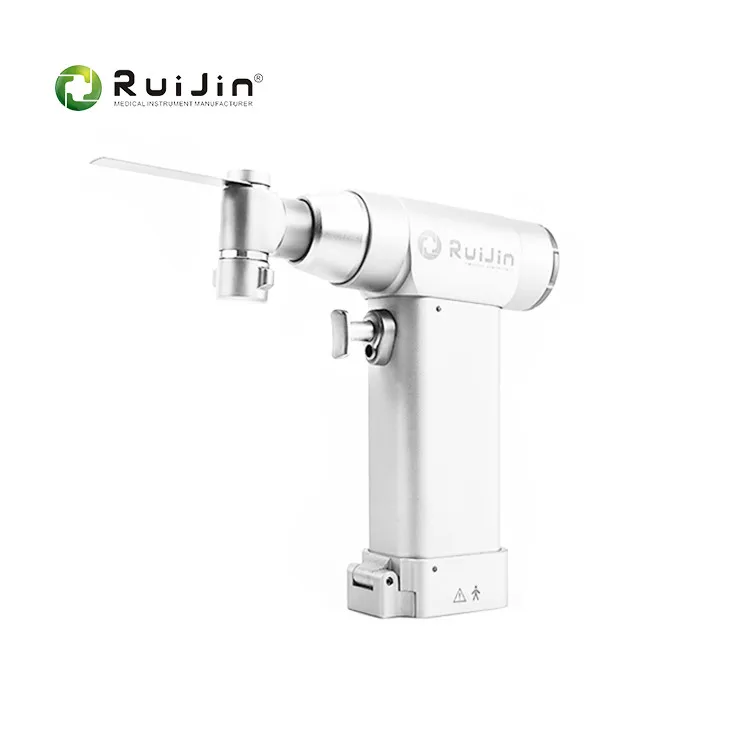

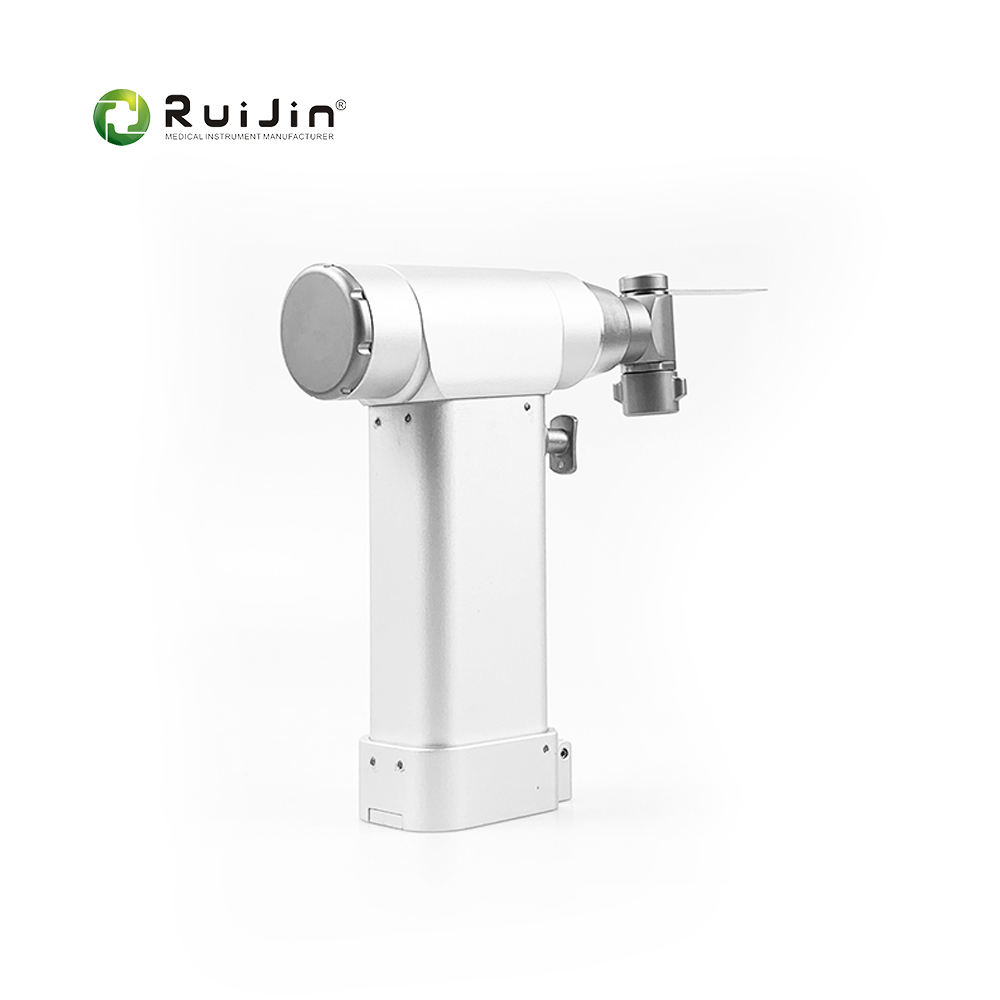

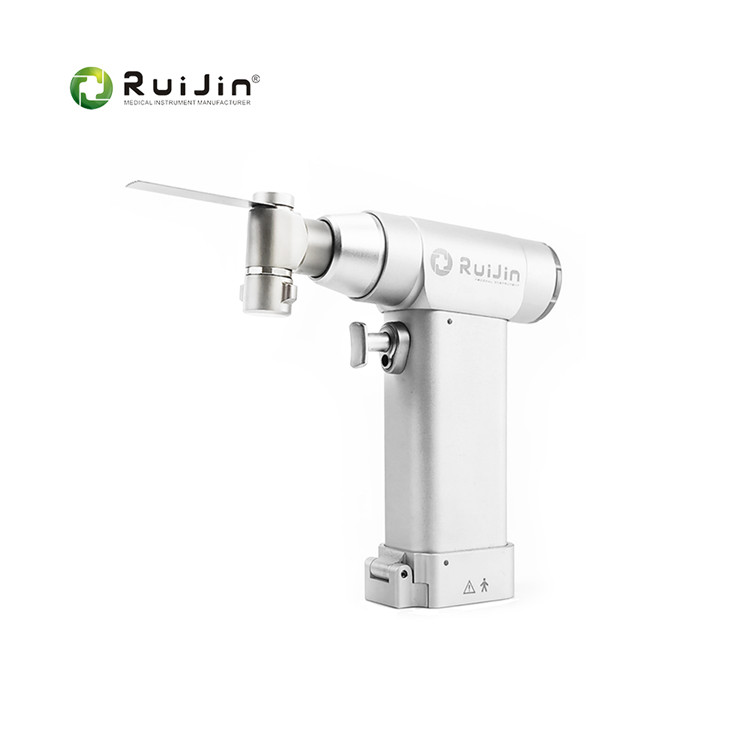

Orthopedic electric saw is designed for joint surgery to provide fast, precise cutting operations. Comfortable ergonomics for precise control without damaging soft tissue. Made from high-quality materials, it is light in weight, optimally balanced, and reduces arm fatigue. Variable speed trigger for blades of all sizes. Compact, low noise, imported motor, durable.
NS-2011
ruijin
The ND 5001 Compact Veterinary Micro Drill is a precision surgical tool designed for detailed microsurgery in small animals. Equipped with a 7.2V Ni-MH battery , it delivers 0–1100 RPM speed control and 3.3 Nm torque for delicate procedures like dental surgeries and tendon repair. Certified by CE and ISO 13485 , this drill is autoclavable at 134–138°C and features a 0.6–6mm Jacobs chuck compatible with micro drill bits.
Weighing 0.35 kg with a ergonomic grip , the drill minimizes hand fatigue during 2+ hour microsurgeries. Its micro-sized chuck (0.6–6mm) supports ultra-fine drill bits for intricate procedures.
The 0–1100 RPM speed control and ±0.05mm concentricity ensure accurate bone drilling and screw placement. A stepless thumb dial allows surgeons to adjust speed in real-time.
The drill body is autoclavable at 134–138°C , withstanding 1,000+ sterilization cycles . The Ni-MH battery provides 60+ minutes of continuous use per charge and has no memory effect.
The 0.6–6mm Jacobs chuck supports micro drill bits for dental surgeries, tendon repair, and arthroscopic procedures. A depth stop collar ensures precise drilling depth in maxillofacial surgeries.
Automatic torque limiting (3.3 Nm) prevents over-drilling, while anti-rotation locking secures attachments during operation. A low-battery alert activates at 20% charge .
Dental Surgery: Used in root canal treatments and dental implant placement in small animals.
Microsurgery: Supports tendon repair, nerve anastomosis, and ocular surgeries.
Arthroscopy: Enables minimally invasive joint procedures with the 0.6mm arthroscopic adapter .
Fracture Fixation: Valuable in pediatric veterinary cases for precise screw placement.
Q: Can the drill be used for large animal surgeries?
A: It is optimized for small animals (e.g., cats, dogs) but can be used for minor procedures in large animals.
Q: What is the warranty period?
A: The drill comes with a 2-year warranty for mechanical components and a 1-year warranty for the battery.
Q: How long does it take to charge the battery?
A: The 7.2V Ni-MH battery charges fully in 3 hours .
Q: Is the chuck compatible with third-party drill bits?
A: Yes, it supports 0.6–6mm drill bits from major veterinary instrument brands.
| handpiece | working voltage | 14.4V |
| output power | 20W above | |
| unit rise in temperature | less than 30 degree celcius | |
| Charger | input voltage | AC220V/50Hz |
| output power | 14.4V,900mA | |
| input power | 30VA | |
| Battery | voltage | 14.4V |
| charging time | about 3 hours | |
| Saw | frequency | 0-18000rpm |
| non-load noise | less than 75dB |
