The Medical Bone Drill and Reciprocating Saw Set for Plastic Surgery emerges as a comprehensive solution for the multifaceted demands of plastic and reconstructive procedures, integrating two essential tools into a single, cohesive system.
NS-3031
ruijin
This set combines a high-speed bone drill (0–1300 RPM) and an oscillating reciprocating saw (15,000 oscillations/min) to streamline workflows in bone contouring, osteotomies, and implant placement. Powered by 14.4V lithium-ion batteries —with two batteries included for uninterrupted use—it delivers 90+ minutes of runtime per charge, ensuring reliability through even the most complex surgeries. Designed with input from plastic surgeons, the set includes multi-brand compatible attachments and a custom storage case, making it a versatile addition to cosmetic, reconstructive, and maxillofacial surgery suites.

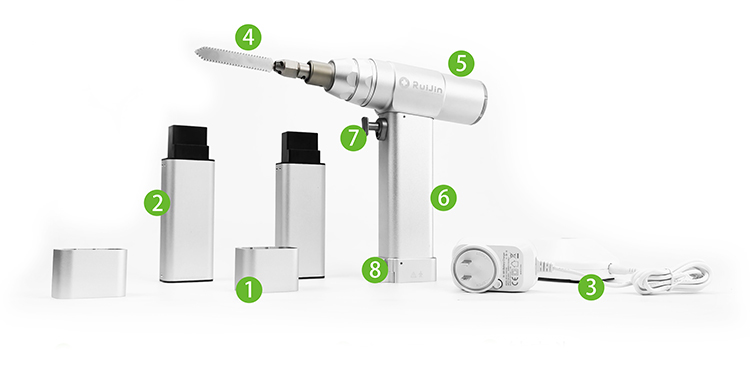

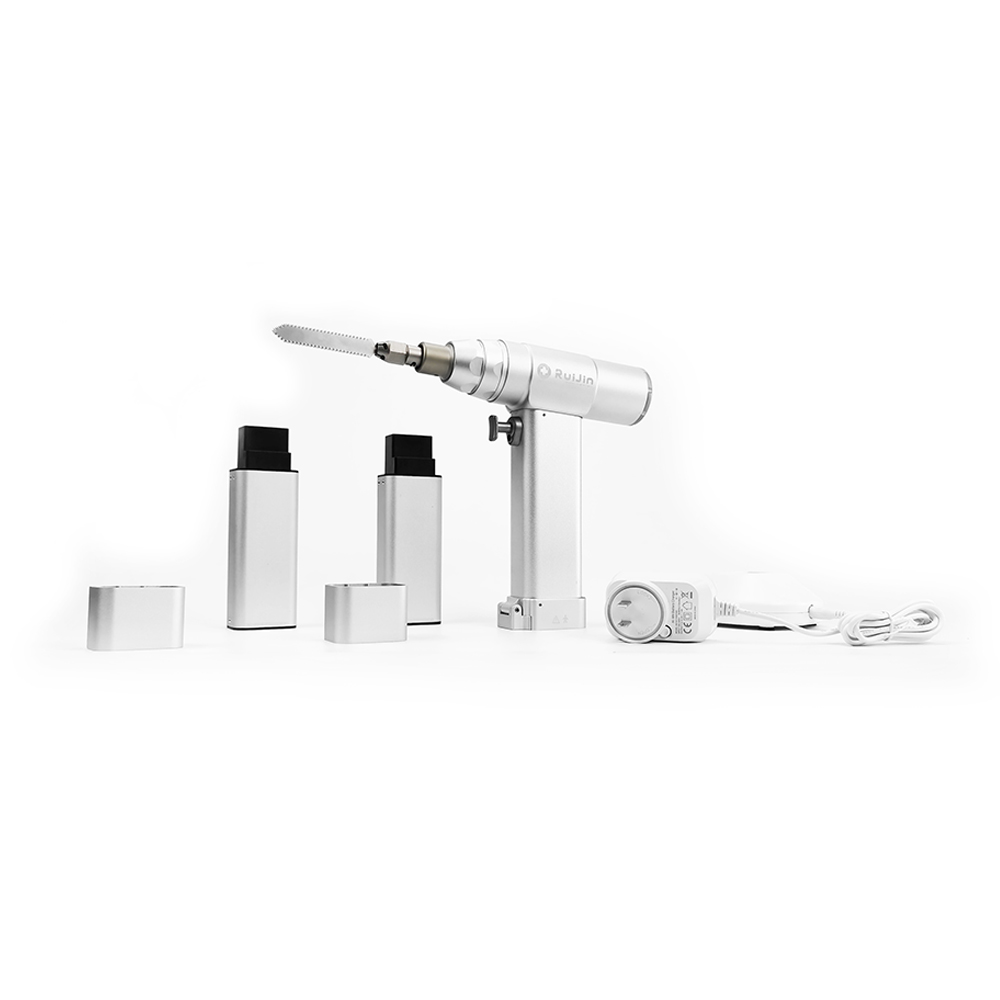

The set comprises two primary tools with seamless interoperability:
Bone Drill: Features 0–1300 RPM variable speed and 10+ Nm torque , with a 2–8mm chuck capacity to accommodate diverse drill bits for screw placement and pilot hole creation.

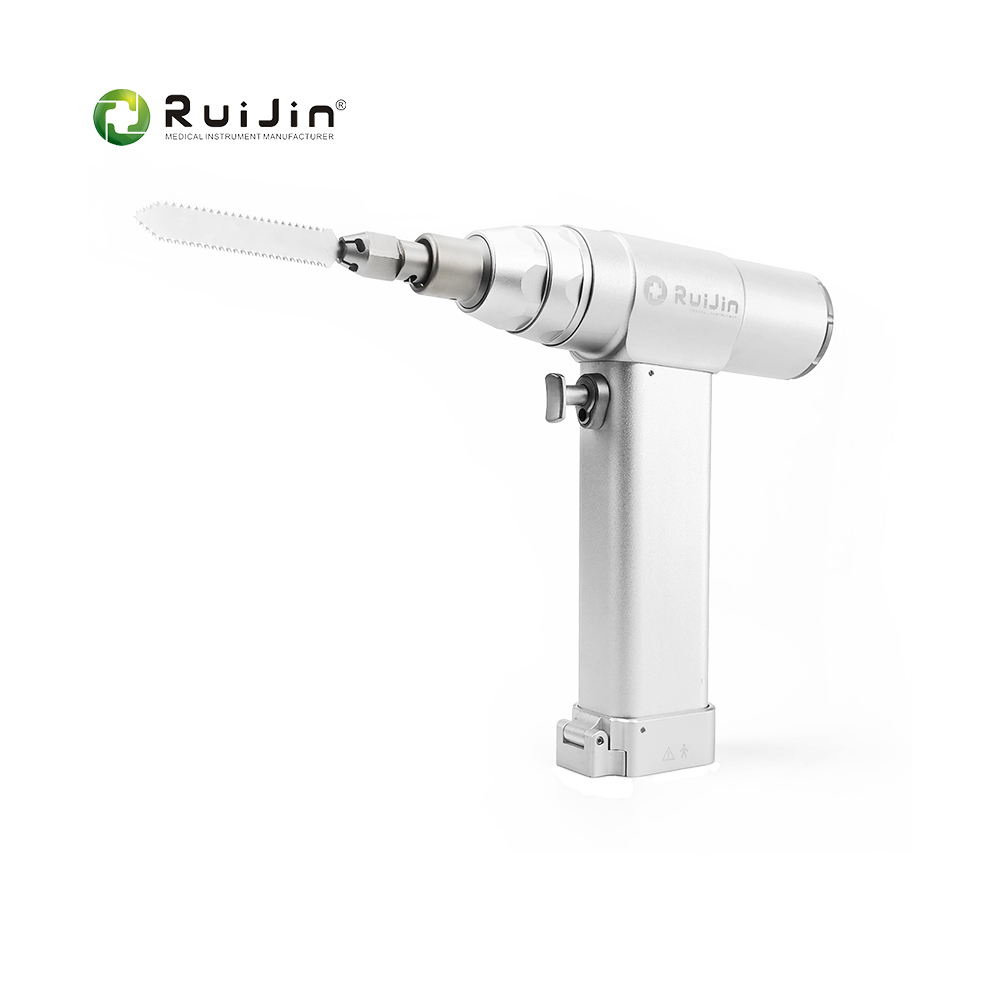

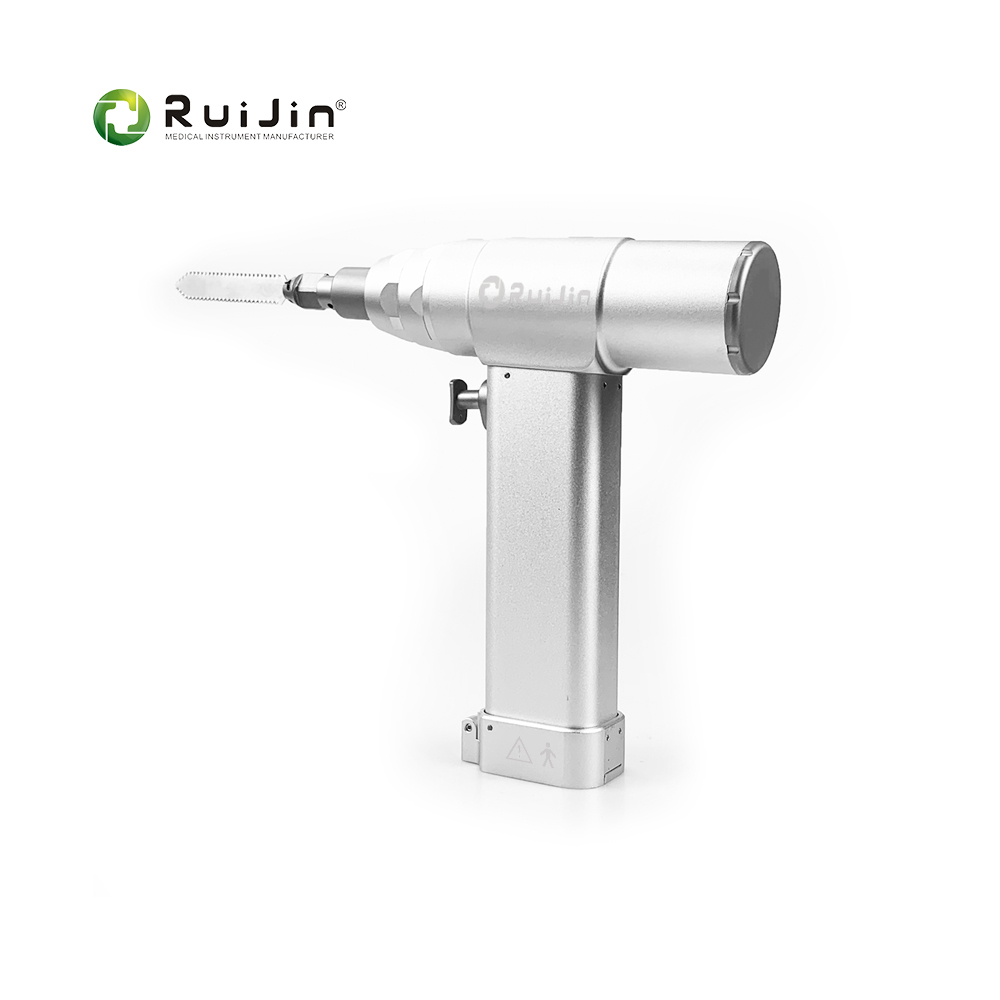

Reciprocating Saw: Delivers 15,000 oscillations/min with 1–3mm amplitude adjustment , optimized for precise bone cutting in facial and jaw reconstruction.
A shared battery platform and one-touch mode memory ensure consistent performance across both tools, with settings retained between uses for procedural efficiency.
The 14.4V high-capacity batteries provide 90+ minutes of mixed-mode use (50% drilling, 50% sawing) —sufficient for 2–3 complex plastic surgery cases. The drill’s brushless motor maintains consistent power output across all speed ranges, avoiding the performance drop common in brushed motors, while the saw’s frequency modulation technology reduces thermal damage to bone by 40% compared to conventional oscillating saws.
Each tool weighs <1.1 kg with rubberized, latex-free grips designed to reduce hand fatigue during extended procedures like facial feminization surgery. Both tools are fully autoclavable at 134–138°C , with sealed electronics and corrosion-resistant components ensuring longevity in sterile environments. The drill’s anti-vibration housing and the saw’s balanced weight distribution further enhance surgeon control.
The set includes a curated selection of attachments:
5mm arthroscopic adapter for minimally invasive procedures (e.g., endoscopic brow lift bone fixation)
AO-compatible drill bits (2–8mm) with diamond coatings for facial bone drilling
Stryker-compatible saw blades (6–18mm) including fine-tooth options for orbital bone work
Depth stop collars with 0.5mm increments for precise drilling in nasal and chin augmentation
Battery charger with dual slots for simultaneous charging
Automatic torque limiting (10 Nm) in the drill prevents over-drilling in delicate facial bones, while the saw’s blade guard protects soft tissues during cutting. Both tools feature thermal cutoff sensors that activate at 60°C , and a quick-release mechanism allows sterile accessory changes in <10 seconds , reducing OR downtime.
Facial Reconstruction: Integral to repairing maxillofacial trauma, combining drilling for plate/screw fixation with sawing for bone graft shaping to restore facial symmetry.
Breast Augmentation: Facilitates rib graft harvesting for chest wall support in reconstructive cases, with precise drilling ensuring graft stability.
Orthopedic Oncology: Enables controlled tumor resection in facial and jaw bone cancers, with the saw’s low-vibration design preserving adjacent healthy tissue.
Spinal Surgery: Supports cervical spine procedures in plastic surgery, such as atlantoaxial fusion, with precise drilling for screw placement.
Cosmetic Bone Contouring: Used in procedures like mandibular angle reduction and cheekbone augmentation, where controlled sawing achieves desired facial aesthetics.
Q: Does the set include a carrying case?

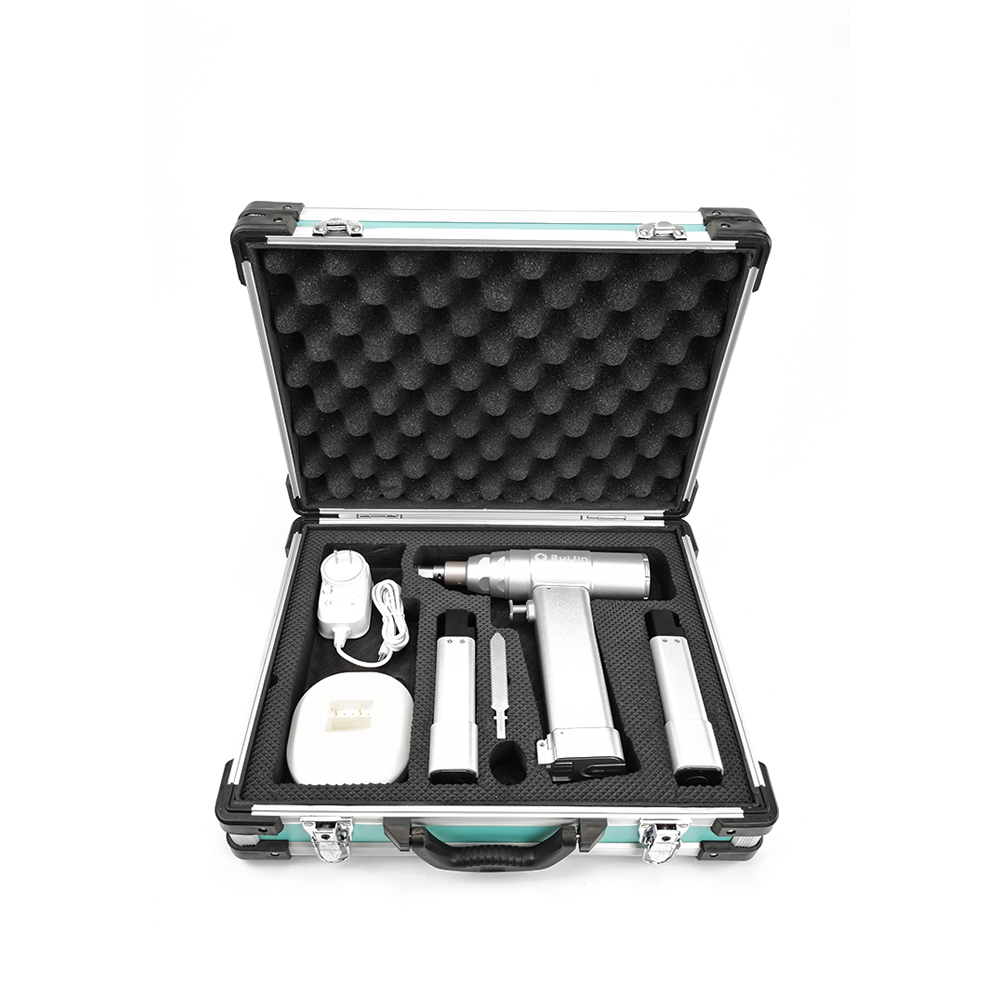

A: Yes, it comes with a customizable foam-lined aluminum case featuring dedicated compartments for each tool, accessory, and battery. The case includes a lockable latch for secure storage and a handle for easy transport between ORs.
Q: Can the saw be used for soft tissue cutting?
A: No, the reciprocating saw is specifically designed for bone cutting only. Its blade design and oscillation speed are optimized for mineralized tissue, and using it on soft tissue risks excessive trauma. Dedicated soft tissue instruments should be used for non-bone dissection.
Q: What is the battery life for each tool?
A: The drill and saw share the same 14.4V lithium-ion batteries , which provide 90+ minutes of continuous runtime per charge. In typical use—alternating between drilling and sawing—each battery supports 2–3 standard plastic surgery procedures before requiring recharging.
Q: Is the set compatible with third-party batteries?
A: Yes, it supports 14.4V lithium-ion batteries from major medical device manufacturers including Stryker, Zimmer Biomet, and Smith & Nephew, ensuring flexibility in battery management and reducing reliance on proprietary accessories.
| Application | open thoracotomy |
| Main material | stainless steel |
| Marks | According to order |
| No-load speed | ≥15000r.m |
| Saw type | Autoclavable |
| charging time | 2 hours or more |
| noise | no louder than 45db |
| Input voltage | 110-240V 50-60HZ |
| rise in temperature | no more than 25℃ |
| working voltage | 14.4v |
