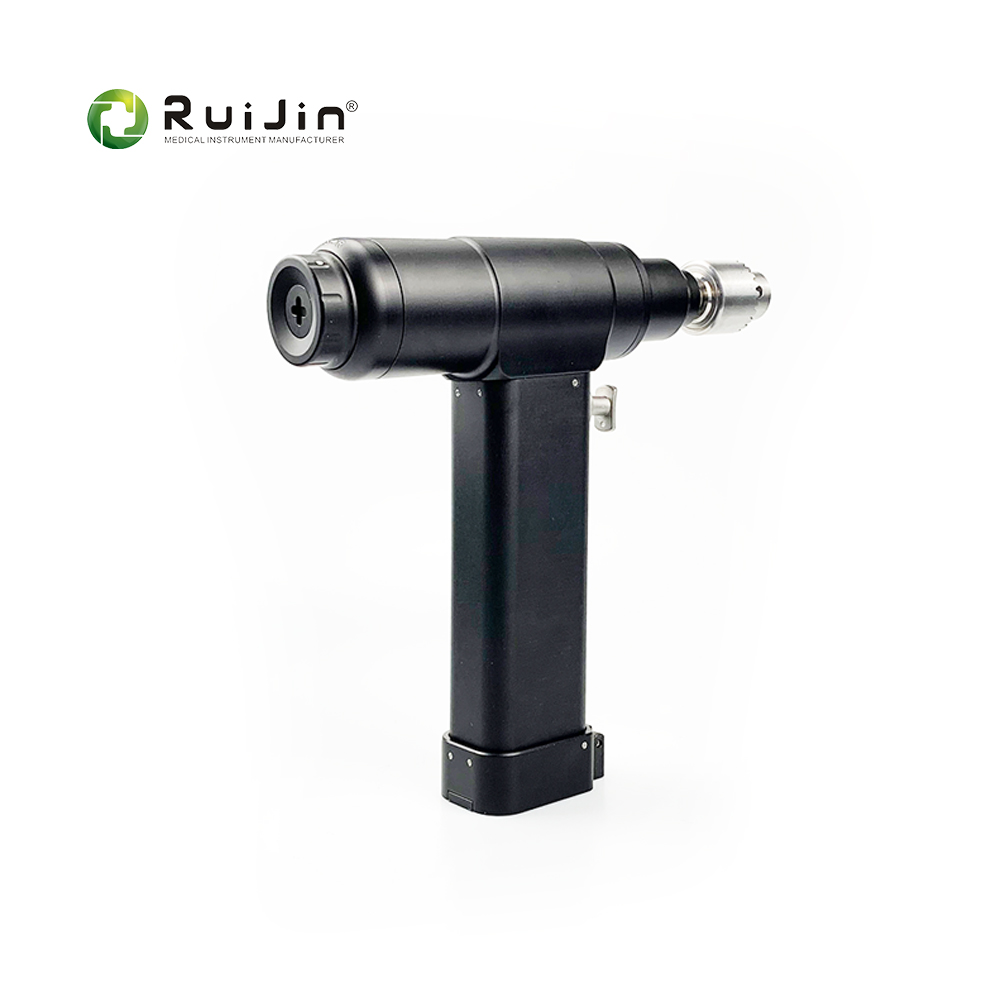

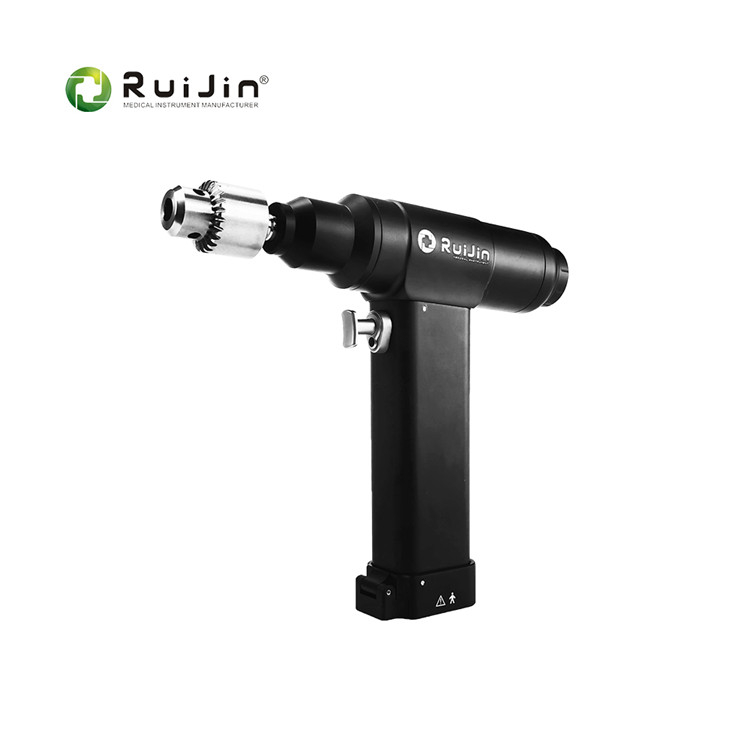

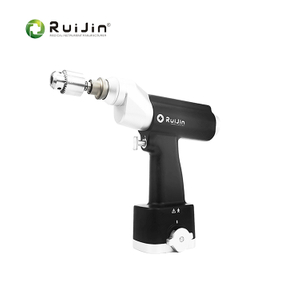

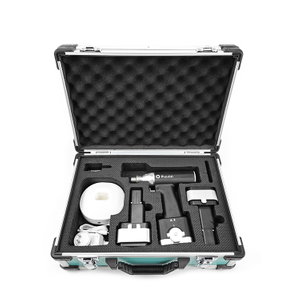

ND-1001
ruijin
Equipped with a brushless motor and oscillating blade technology , it delivers 15,000 oscillations/min with 1–3mm amplitude adjustment to ensure precise bone cutting while minimizing thermal damage to underlying tissues. Certified by CE, FDA, and ISO 13485 , this system meets the highest sterilization standards, with components autoclavable at 134–138°C . Its ergonomic design (weight: 0.85 kg ) and wireless operation (powered by a 14.4V lithium-ion battery ) reduce surgeon fatigue during prolonged neurosurgical interventions.
The oscillating blade operates at 15,000 oscillations/min with adjustable amplitude (1–3mm) , allowing surgeons to adapt to bone density variations. A cooling irrigation system prevents thermal injury to the brain, ensuring safe and efficient cutting even in delicate cranial procedures.
The ±0.01mm blade alignment guarantees accurate bone contouring, while automatic torque limiting (19 Nm) prevents over-penetration. A blade guard system protects soft tissues during cranial splitting, reducing the risk of accidental injury.
Weighing 0.85 kg with a non-slip grip , the tool minimizes wrist strain during 3+ hour surgeries. All surgical-contact components are autoclavable at 134–138°C , and the IPX7 waterproof rating allows cleaning under running water.
The system supports Stryker and Aesculap-compatible blades (6–18mm width) , making it ideal for hospitals using multi-vendor equipment. A tool-free blade release enables quick changes in <10 seconds .
The 14.4V lithium-ion battery provides 90+ minutes of continuous use per charge, with a rapid-charging system (3 hours to full capacity). A smart battery management system ensures consistent power output even at low charge levels.
Craniotomy: Used in tumor resection and aneurysm repair, delivering precise bone flap creation with minimal postoperative deformities.
Skull Base Surgery: Enables access to complex anatomical regions like the pituitary gland and cerebellopontine angle.
Trauma Surgery: Valuable in emergency cranial decompression, with cordless design enhancing mobility in trauma units.
Pediatric Neurosurgery: The lightweight design and adjustable speed (0–15,000 oscillations/min) make it suitable for delicate pediatric skull procedures.
Q: Can the saw be used for spinal surgeries?
A: Yes, it includes a 5mm arthroscopic adapter for minimally invasive spinal decompression.
Q: What is the maximum blade depth?
A: The saw supports up to 18mm depth , suitable for most cranial and spinal applications.
Q: Is the battery compatible with third-party chargers?
A: Yes, it supports 14.4V lithium-ion chargers from major brands like Stryker and Conmed.
Q: How is the blade sharpness maintained?
A: The titanium nitride coating enhances blade hardness, ensuring sharpness for 50+ procedures .
| Product name | Normal bone drill | Hollow drill | Grinding drill | Craniotomy drill | High torque joint drill |
| Output power(w) | 80-200 | 130 | 130 | 130 | 150-200 |
| Rotating speed(rpm) | 0-1200 | 0-1000 | 0-300 | 0-900 | 0-300 |
| Noise(db) | ≤65 | ≤65 | ≤65 | ≤40 | ≤65 |
| Disinfection(℃) | ≤135 | ≤135 | ≤135 | ≤135 | ≤135 |
| Battery(v) | 14.4 | 14.4 | 14.4 | 14.4 | 14.4 |
| Charging time(h) | 3 | 3 | 3 | 3 | 3 |
