SM-100-1
ruijin
The Compact Electric Orthopedic Saw with High Precision is a lightweight oscillating tool designed for precise bone cutting in arthroscopic surgeries, pediatric orthopedics, and minimally invasive procedures. Equipped with a Swiss-made brushless motor and oscillating blade technology , it delivers 15,000 oscillations/min with 3–8° amplitude adjustment to minimize soft tissue damage. Certified by CE, FDA, and ISO 13485 , this saw features a 0.95kg ergonomic design and autoclavable components (134–138°C) for infection control. Its tool-free blade release supports Stryker and Aesculap-compatible blades.
The oscillating blade (6–18mm width) operates at 15,000 oscillations/min with adjustable amplitude (3–8°) , adapting to bone density variations. A cooling irrigation system (2–5 mL/min) prevents thermal injury, maintaining tissue temperature below 42°C .
±0.01mm blade alignment ensures accurate contouring, supported by automatic torque limiting (19 Nm) to prevent over-penetration. A blade guard system retracts during bone contact and extends during soft tissue manipulation.
Weighing 0.95kg with a non-slip grip , the saw reduces fatigue during 3+ hour surgeries. All surgical-contact components are autoclavable at 134–138°C and withstand 1,000+ sterilization cycles .

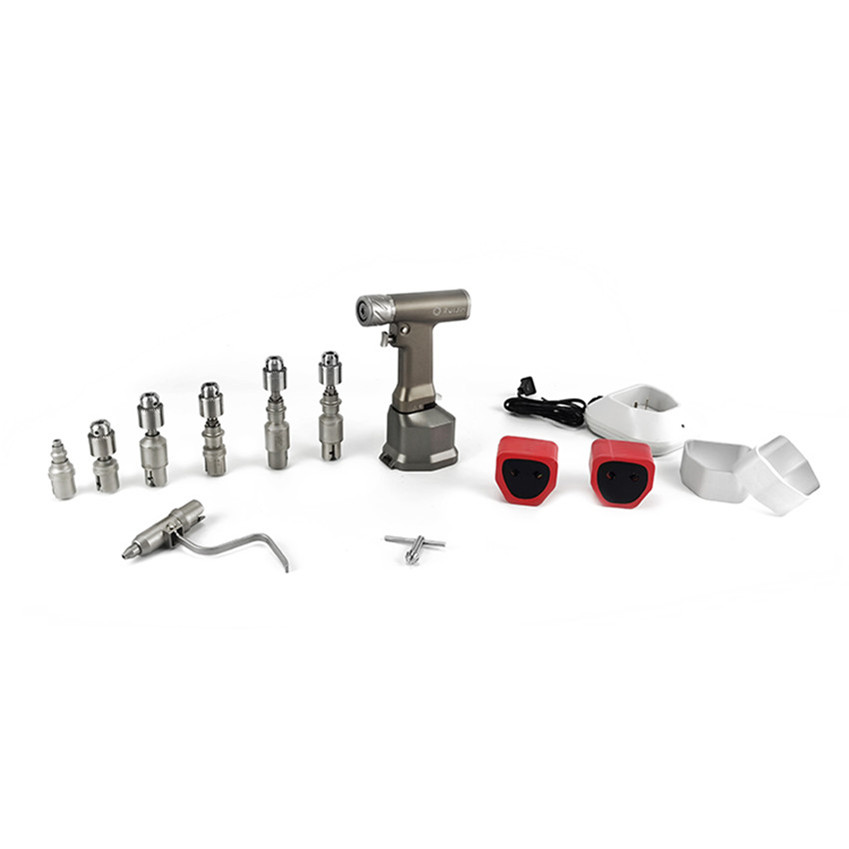

The tool-free blade release supports Stryker and Aesculap-compatible blades (6–18mm width) , with Jacobs chuck (2–8mm) for drill bit compatibility. A 5mm arthroscopic adapter enables minimally invasive procedures.
The 14.4V lithium-ion battery includes a smart management system for consistent power output, providing 90+ minutes of runtime . A rapid-charging system (2 hours to full capacity) ensures minimal downtime.
Arthroscopic Surgery: Used in knee and shoulder surgeries for precise cartilage and bone resection.
Pediatric Orthopedics: The lightweight design (0.95kg) and adjustable speed (0–15,000 oscillations/min) make it suitable for delicate pediatric procedures.
Spinal Surgery: Enables minimally invasive decompression with a 5mm arthroscopic adapter , reducing postoperative recovery time.
Trauma Surgery: Valuable in emergency settings for rapid bone resection, with cordless mobility in trauma units.
Q: Can the saw be used for sternotomy?
A: Yes, it includes a 10mm standard blade for sternal splitting, with optional scar tissue blades for redo surgeries.
Q: What is the maximum blade depth?
A: The saw supports up to 18mm depth , suitable for most orthopedic applications.
Q: Is the motor waterproof?
A: Yes, it meets IPX7 waterproof standards for easy cleaning under running water.
Q: How is the blade sharpness maintained?
A: The titanium nitride coating enhances blade hardness, ensuring sharpness for 50+ procedures .
Handpiece | Working Voltage | 14.4V |
Output Power | ≥20W | |
Unit rise in temperature | ≤25℃ | |
Charger | Input Voltage | AC 220V,50Hz |
Output Power | 14.4V,900Ma | |
Input power | 30VA | |
Battery | Voltage | 14.4V |
Charging time | About 3h | |
Oscillations | 0-15000ocs/min | |
